CHT2 Series


Main Features

  • Suitable for embroidery on flats, caps, finished garments and more
  • High Definition true color 10.4” LCD touch screen
  • Max. Embroidery Area: 40cm x 45cm / 16" x 18"
  • Optional wide model (-w) with Max. Embroidery Area: 50cm x 45cm / 20" x 18"
  • Perfect for established and growing embroidery businesses
  • 12 or 15 Needles per head
  • 4-12 Heads per machine
  • Easily apply appliqué, sequin, boring or cording
  • Heavy duty steel stand with wheels to ensure both stability and mobility
  • Max. Speed 1.000 stiches per minute
  • Memory Capacity: 50.000.000 stiches or 200 designs
  • Machine reads multiple design formats, such as DST, DSB and more
  • 270° wide angle cap system
  • Servo motor 150W - lowest power consumption in the industry!
  • Built-in universal power supply, 110V/60Hz and 220V/50Hz (self adaptable worldwide)
  • DC36V micro-step motor for X & Y axis driving to ensure low noise and less vibration
  • Included laser trace device
  • Recessed USB port to protect USB flash drive
  • Networkable and Wi-Fi capable
  • Emergency Stop Button
  • Automatic thread trimmer
  • Thread break detection
  • Multiple hoop sizes for a variety of embroidery needs
  • Automatic memory retention

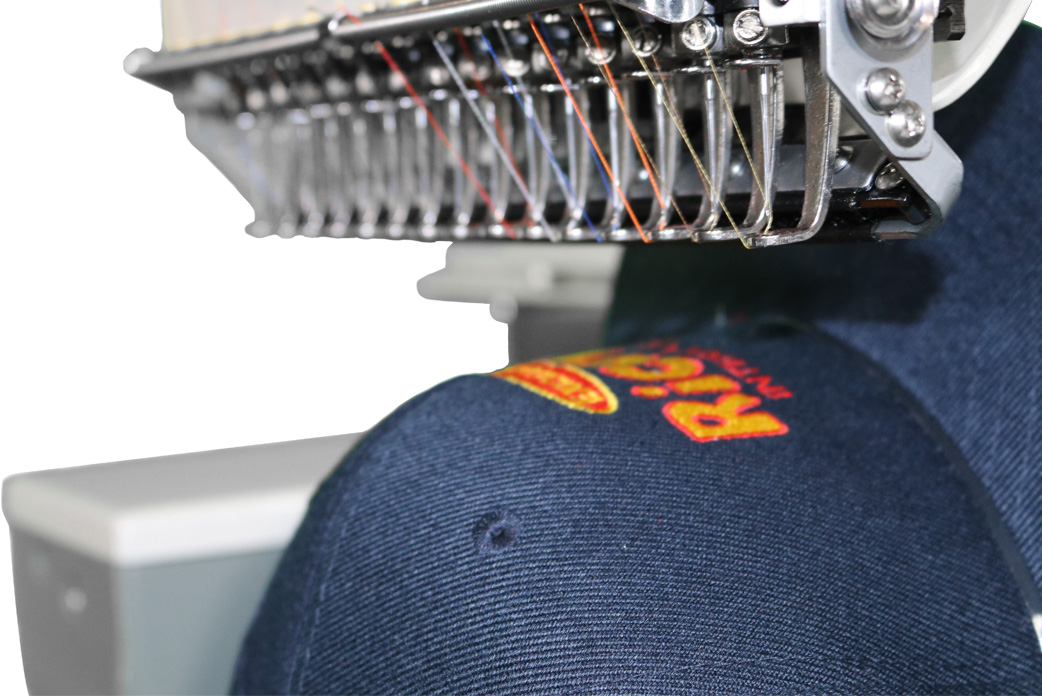

Embroidery Example

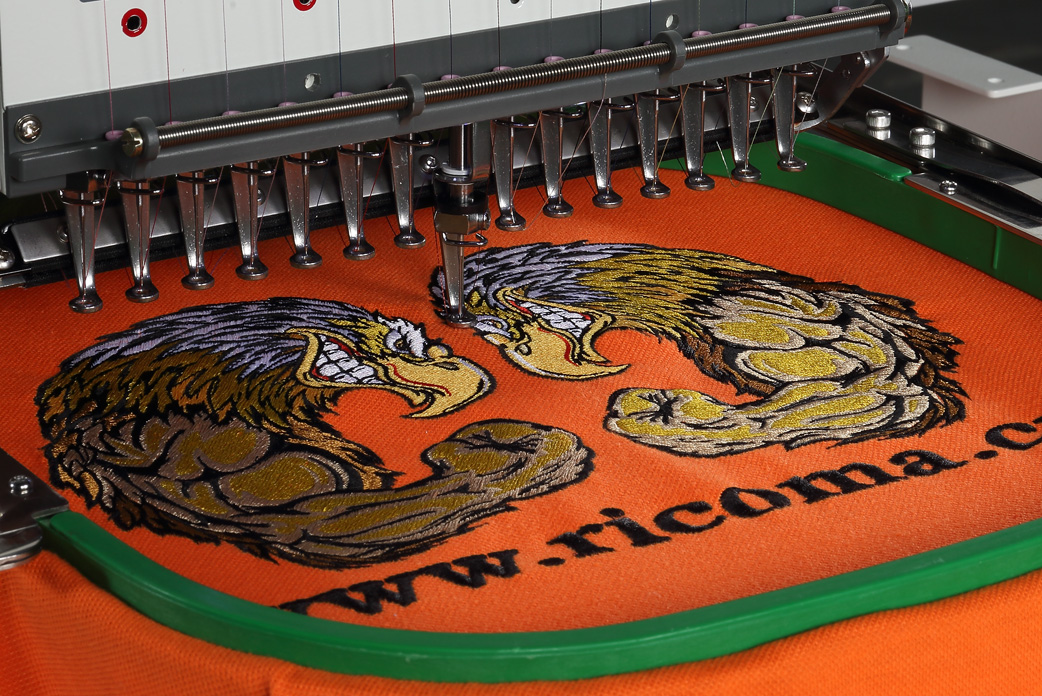

Embroidery Example

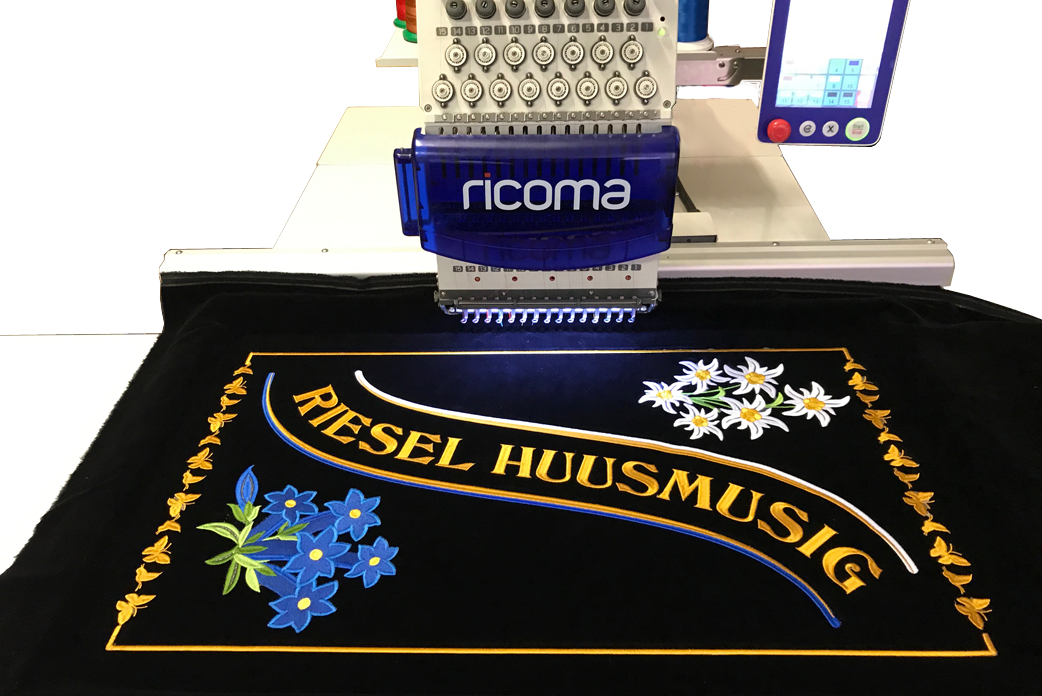

Embroidery Example

Touch Screen Control Panel

  • User-friendly interface
  • Easily apply appliqué, sequin, boring or cording
  • New ergonomic touch screen allows for easy and comfortable operation with right-hand thumb
  • Preset hoop parameters designed to avoid hitting hoops
  • Multi-angle, rotatable and adjustable control panel bracket allows for better visibility
  • Pre-sew design trace capable
  • Automatic color change
  • Built in button form 172° degrees to 196° under manual color change mode, a great help for machine maintenance
  • Frame offset and frame outlining available for easy appliqué embroidery
  • One step trace button directly on the main screen
  • External 100° button and trimming button
  • Multiple languages: English, Chinese, Spanish, Portuguese, Turkish, Dutch, French, German, Russian, Vietnamese, Thai, Arabic and more

Models

CHT2-1204

Needles
12

Heads
4

Weight
650kg

Embroidery Area
40cm x 45 cm
16" x 18"

Size
270cm x 123cm x 160cm
106" x 48" x 63"

CHT2-1504

Needles
15

Heads
4

Weight
650kg

Embroidery Area
40cm x 45 cm
16" x 18"

Size
270cm x 123cm x 160cm
106" x 48" x 63"


CHT2-1206

Needles
12

Heads
6

Weight
760kg

Embroidery Area
40cm x 45 cm
16" x 18"

Size
350cm x 123cm x 160cm
138" x 48" x 63"

CHT2-1506

Needles
15

Heads
6

Weight
760kg

Embroidery Area
40cm x 45 cm
16" x 18"

Size
350cm x 123cm x 160cm
138" x 48" x 63"


CHT2-1208

Needles
12

Heads
8

Weight
1.000kg

Embroidery Area
40cm x 45 cm
16" x 18"

Size
430cm x 123cm x 165cm
169" x 48" x 65"

CHT2-1508

Needles
15

Heads
8

Weight
1.000kg

Embroidery Area
40cm x 45 cm
16" x 18"

Size
430cm x 123cm x 165cm
169" x 48" x 65"


CHT2-1212

Needles
12

Heads
12

Weight
1.500kg

Embroidery Area
40cm x 45 cm
16" x 18"

Size
596cm x 123cm x 165cm
235" x 48" x 65"

CHT2-1512

Needles
15

Heads
12

Weight
1.500kg

Embroidery Area
40cm x 45 cm
16" x 18"

Size
596cm x 123cm x 165cm
235" x 48" x 65"

PDF Ricoma CHT2 Series 9,7 MB


Included Accessories


Frames

  • 2 x Round Hoop 9 cm (per head)
  • 2 x Round Hoop 12 cm (per head)
  • 2 x Round Hoop 15 cm (per head)
  • 2 x Round Hoop 20 cm (per head)
  • 2 x Square Hoop 29 x 29 cm (per head)
  • 1 x Aluminium border Frame (per machine)
    (size varies per machine)

Complete Cap Embroidery System

Cap Frame

2 x Cap Frame (per head)

Cap Hoop Station

1 x Cap Hoop Station (per machine)

Cap Drive

1 x Cap Drive (per head)


Laser Pointer

Laser Pointer

Included laser trace device
