TC Series


Main Features

  • Suitable for embroidery on flats, caps, finished garments and more
  • High Definition true color 7” LCD touch screen (Model TC-7S)
  • High Definition true color 8” LCD touch screen (Model TC-8S)
  • Max. Embroidery Area: 56cm x 36cm / 22" x 14"
    (Model RCM-1501TC-EW4814: 122cm x 36cm / 48" x 14")
  • Perfect for startups and home businesses
  • 12 or 15 Needles per head
  • 1 Head per machine
  • Easily apply appliqué, sequin, boring or cording
  • Heavy duty steel stand with wheels to ensure both stability and mobility
  • Max. Speed 1.200 stiches per minute
  • Memory Capacity: 20.000.000 stiches or 200 designs
  • Machine reads multiple design formats, such as DST, DSB and more
  • 270° wide angle cap system
  • Servo motor 150W - lowest power consumption in the industry!
  • Built-in universal power supply, 110V/60Hz and 220V/50Hz (self adaptable worldwide)
  • DC36V micro-step motor for X & Y axis driving to ensure low noise and less vibration
  • Included laser trace device
  • Recessed USB port to protect USB flash drive
  • Networkable and Wi-Fi capable
  • Emergency Stop Button
  • Automatic thread trimmer
  • Thread break detection
  • Multiple hoop sizes for a variety of embroidery needs
  • Automatic memory retention
Embroidery Example
Embroidery Example
Embroidery Example

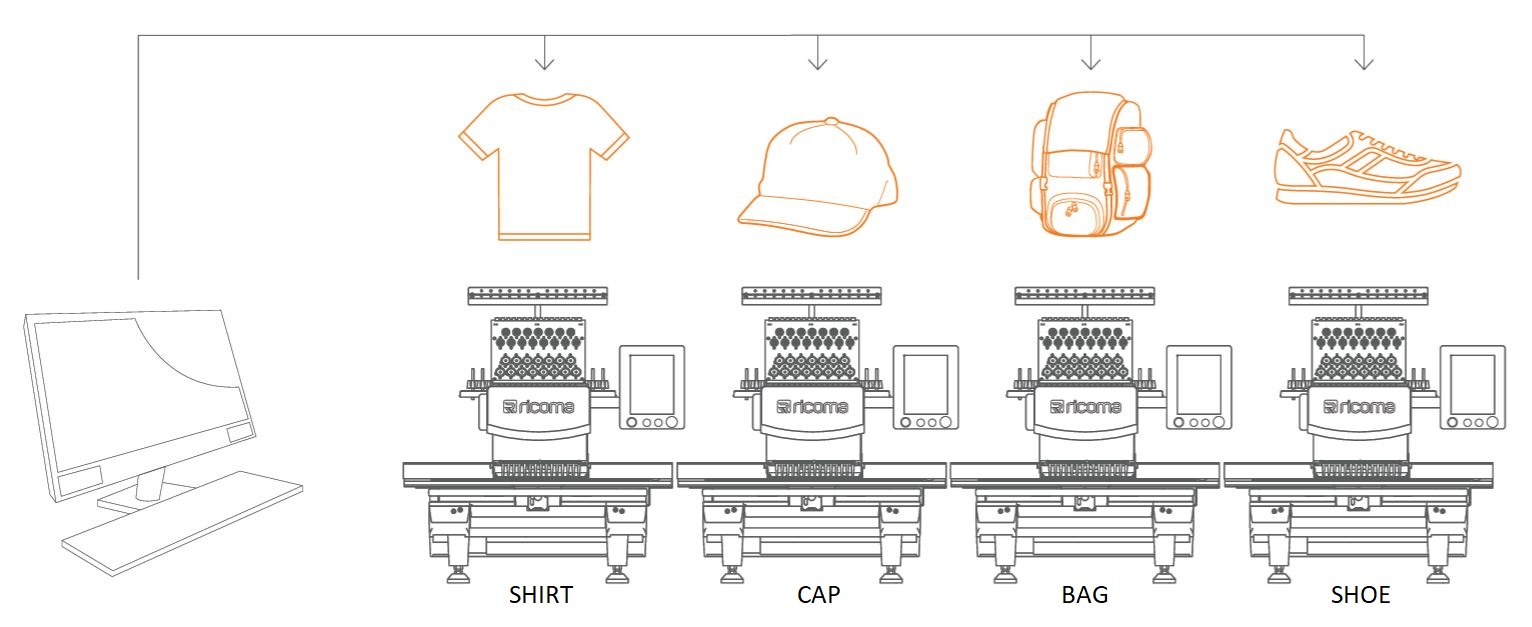

Network Capability Ready

Using advanced network technology, users can link together as many Ricoma machines as desired to an extremely flexible production system. Embroider the same design on all of your machines, or embroider different designs on individual machines simultaneously.

Network ready

Touch Screen Control Panel 7S

  • User-friendly interface
  • Easily apply appliqué, sequin, boring or cording
  • New ergonomic touch screen allows for easy and comfortable operation with right-hand thumb
  • Preset hoop parameters designed to avoid hitting hoops
  • Multi-angle, rotatable and adjustable control panel bracket allows for better visibility
  • Pre-sew design trace capable
  • Automatic color change
  • Built in button form 172° degrees to 196° under manual color change mode, a great help for machine maintenance
  • Frame offset and frame outlining available for easy appliqué embroidery
  • One step trace button directly on the main screen
  • External 100° button and trimming button
  • Multiple languages: English, Chinese, Spanish, Portuguese, Turkish, Dutch, French, German, Russian, Vietnamese, Thai, Arabic and more

Touch Screen control Panel 8S

  • User-friendly interface
  • Easily apply appliqué, sequin, boring or cording
  • New ergonomic touch screen allows for easy and comfortable operation with right-hand thumb
  • Preset hoop parameters designed to avoid hitting hoops
  • Multi-angle, rotatable and adjustable control panel bracket allows for better visibility
  • Pre-sew design trace capable
  • Automatic color change
  • Built in button form 172° degrees to 196° under manual color change mode, a great help for machine maintenance
  • Frame offset and frame outlining available for easy appliqué embroidery
  • One step trace button directly on the main screen
  • External 100° button and trimming button
  • Multiple languages: English, Chinese, Spanish, Portuguese, Turkish, Dutch, French, German, Russian, Vietnamese, Thai, Arabic and more
  • Laser pointer is activated when tracing design
  • New mode for needle path calculation, optimizing embroidery quality
  • Screenshot function
  • 3D design view for better visibility
  • Machine parameters can be exported and imported for easy maintenance

Models

RCM-1201TC-7S

Needles
12

Heads
1

Weight
90kg

Embroidery Area
56cm x 36cm
22" x 14"

Size
74cm x 86cm x 158cm
29" x 34" x 62"

RCM-1501TC-7S

Needles
15

Heads
1

Weight
90kg

Embroidery Area
56cm x 36cm
22" x 14"

Size
74cm x 86cm x 158cm
29" x 34" x 62"


RCM-1501TC-7S-EW4814

Needles
15

Heads
1

Weight
90kg

Embroidery Area
122cm x 36cm
48" x 14"

Size
74cm x 86cm x 158cm
29" x 34" x 62"


This model contains the optional Embroidery Field Extension

RCM-1201TC-8S

Needles
12

Heads
1

Weight
90kg

Embroidery Area
56cm x 36cm
22" x 14"

Size
74cm x 86cm x 158cm
29" x 34" x 62"

RCM-1501TC-8S

Needles
15

Heads
1

Weight
90kg

Embroidery Area
50cm x 36cm
22" x 14"

Size
74cm x 86cm x 158cm
29" x 34" x 62"


RCM-1501TC-8S-EW4814

Needles
15

Heads
1

Weight
90kg

Embroidery Area
122cm x 36cm
48" x 14"

Size
74cm x 86cm x 158cm
29" x 34" x 62"


This model contains the optional Embroidery Field Extension

PDF Ricoma TC-S7 Series 12,4 MB

PDF Ricoma TC-S8 Series 13,1 MB


Included Accessories


Frames

  • 2 x Round Hoop 9 cm
  • 2 x Round Hoop 12 cm
  • 2 x Round Hoop 15 cm
  • 2 x Round Hoop 20 cm
  • 2 x Square Hoop 29 x 29 cm
  • 1 x Sash Frame 54 x 36 cm

Complete Cap Embroidery System

Cap Frame

2 x Cap Frame

Cap Hoop Station

1 x Cap Hoop Station

Cap Drive

1 x Cap Drive


Laser Pointer

Laser Pointer

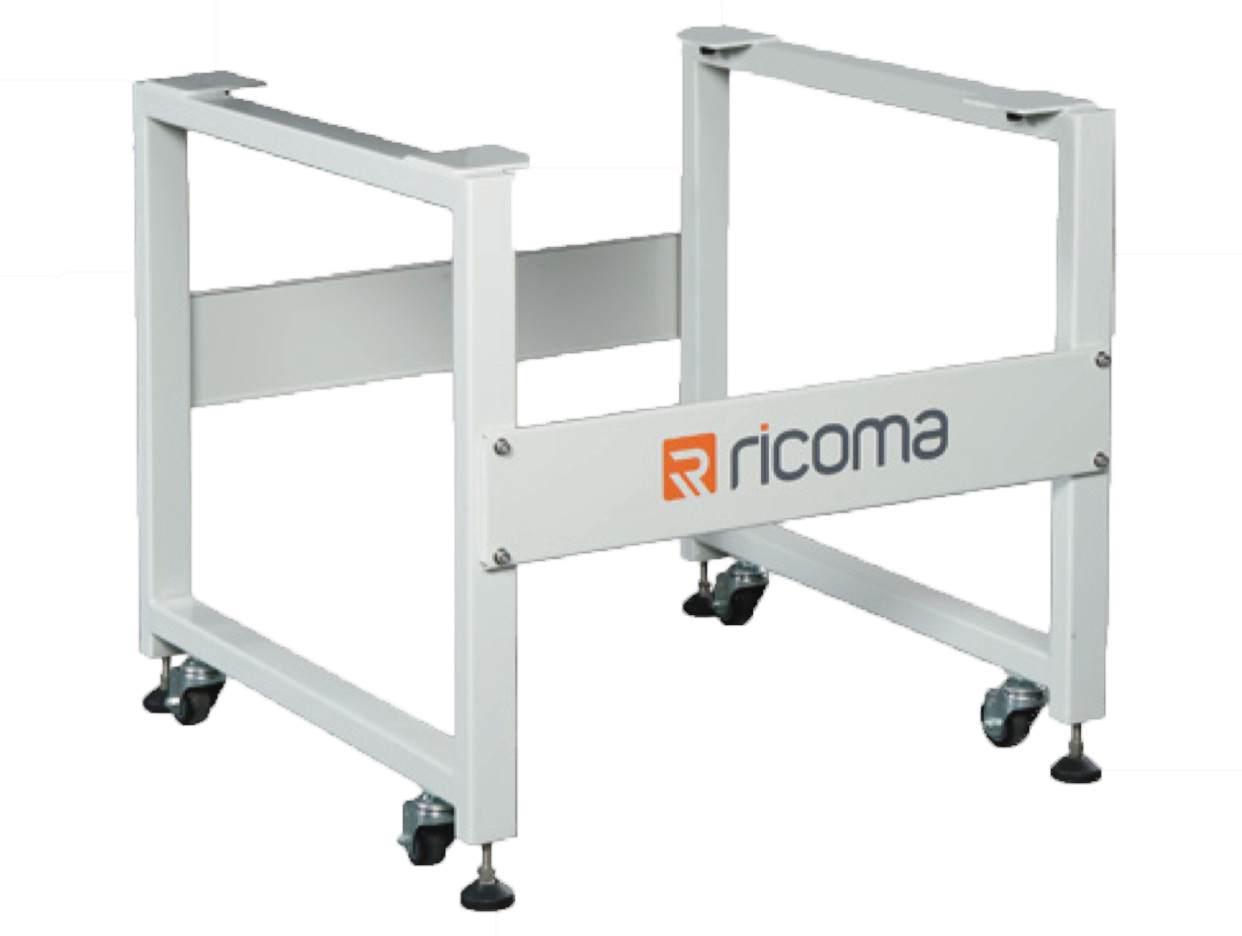

Heavy duty steel stand with wheels to ensure both stability and mobility

Heavy duty steel stand with wheels to ensure both stability and mobility

Size: 70cm x 70cm x 78cm
Weight: 38kg

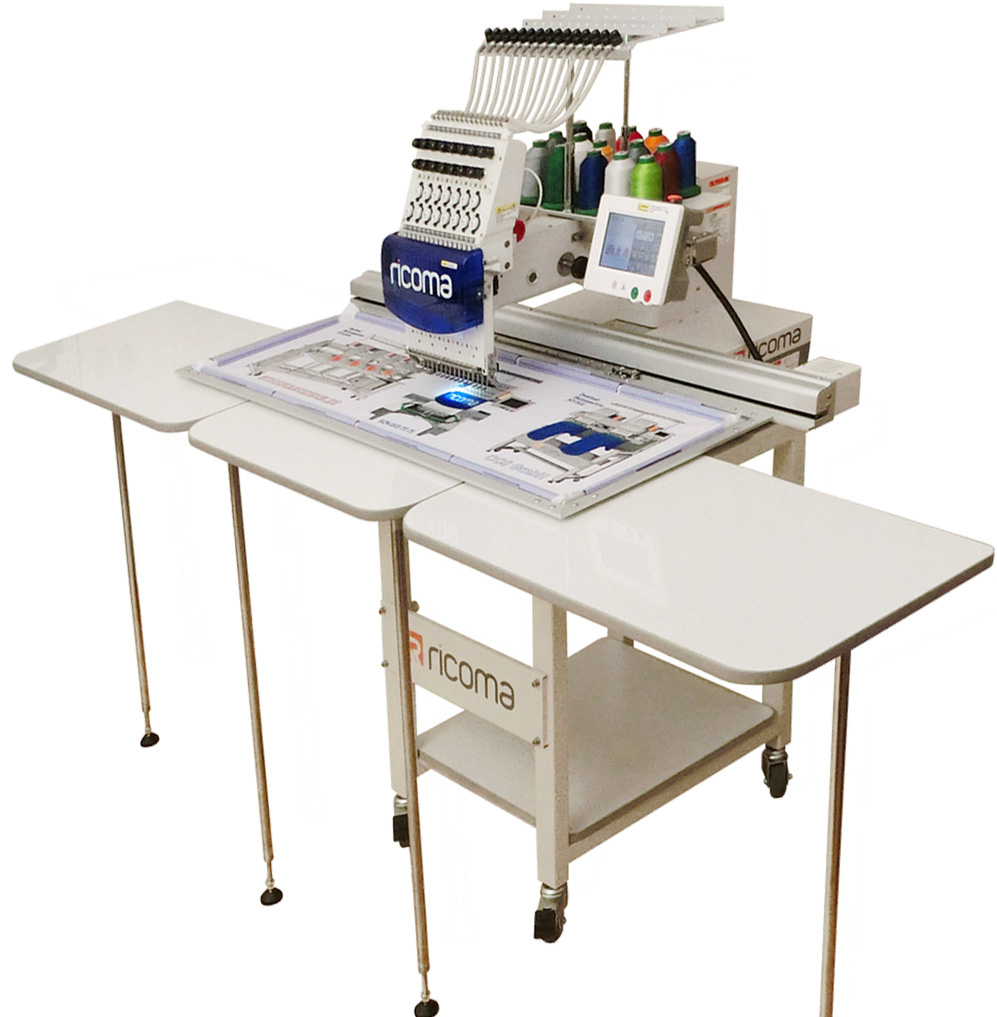

Embroidery Field Extension

Embroidery Field Extension

122cm x 36cm / 48" x 14" wide sewing field extension.

The model RCM-1501TC-EW4814 contains this extension.
For other 15 needle machines this Embroiderx Field Extension is optional available.


Download the catalog of the entire Ricoma embroidery machine series as a PDF file.
The catalog covers 53 pages and is 57,2 MB in size: PDF Ricoma Embroidery Machines
